In industrial water treatment systems, precise chemical dosing is paramount to ensure efficiency, safety, and regulatory compliance. One key tool in achieving this precision is fluorescent tracers like 1,3,6,8-Pyrenetetrasulfonic Acid (PTSA). The use of PTSA is common in cooling towers and reverse osmosis systems to monitor and control the concentration of treatment chemicals. Accurate calibration of PTSA fluorometers is essential to obtaining reliable measurements because it facilitates effective process control. AlpHa Measurement Solutions has introduced the XCITE Measure app, recognizing the need for streamlined calibration and enhanced usability. This modern tool works seamlessly with Bluetooth-enabled fluorometers, simplifying calibration and providing real-time monitoring capabilities.
This article delves into the essentials of PTSA calibration, explores the XCITE Measure app’s real-time monitoring features, examines its digital functionalities, discusses the current loop verification and diagnostic features, and highlights the benefits of a digitally enabled PTSA monitoring workflow.
PTSA Calibration Essentials
Calibration is a critical process that ensures the accuracy and reliability of PTSA fluorometers. Factors like temperature fluctuations, sensor fouling, and chemical interferences can affect sensor readings in dynamic water treatment environments. Regular calibration aligns the sensor’s response with known PTSA concentrations, thus maintaining measurement integrity.
The standard procedure for calibrating a PTSA fluorometer involves several key steps:
- Preparing Calibration Standards: Prepare calibration standards with known PTSA concentrations, typically ranging from 0 to 1000 parts per billion (ppb). Use high-purity water and American Chemical Society-grade chemicals when preparing the calibration standards for accuracy.
- Running Baseline and Span Calibration: First, establish a baseline by measuring a blank sample with zero PTSA concentration. Then, measure the prepared standards to create a calibration curve correlating sensor readings with known concentrations.
- Ensuring Sensor Cleanliness and Environmental Consistency: Before calibration, clean the sensor to remove any residues that might affect readings. Also, conduct the calibration in a controlled environment to minimize variables such as temperature and light interference.
Proper calibration ensures the fluorometer provides reliable PTSA ppb readings, even under varying light and temperature conditions. The XCITE Measure app simplifies this process by providing guided calibration procedures, reducing the potential for human error and enhancing efficiency.
Real-Time Monitoring with the XCITE Measure App
The integration of Bluetooth technology in AlpHa’s fluorometers allows for seamless pairing with the XCITE Measure app on iPhones. This connectivity enables real-time monitoring of PTSA concentrations, providing immediate insights into system performance.
Real-time monitoring offers several advantages:
- Data Accuracy: Continuous monitoring allows for detecting anomalies or deviations from expected PTSA levels. Therefore, corrective actions can be taken promptly.
- Rapid Response to System Deviations: Immediate access to data enables operators to adjust chemical dosing in real-time. Thus, preventing issues such as scaling or corrosion.
- Process Transparency: Generally, real-time data visualization fosters a better understanding of system dynamics, facilitating informed decision-making.
The XCITE Measure app updates readings every few seconds, allowing field professionals to make informed decisions on the spot. This capability is particularly valuable in dynamic environments where conditions can change rapidly.
Digital Features of the XCITE Measure App for PTSA Calibration
The XCITE Measure app is equipped with a suite of digital features designed to enhance user experience and data management:
- Live Parameter Display: The app displays real-time readings of PTSA concentration, temperature, and other relevant parameters. This provides a comprehensive overview of system status.
- Data Storage and Historical Logging: Measurement data is automatically logged, allowing users to track trends and conduct retrospective analyses.
- Photo Documentation of Test Events: Users can capture photos during testing. Thus, providing visual context that can be valuable for documentation and troubleshooting.
- Simple Export Options via Email or App Integration: Data can be easily exported for reporting or further analysis. Therefore, streamlining communication and record-keeping.
Furthermore, the app is compatible with various iPhone models, ensuring flexibility and accessibility for users. Its responsive design and intuitive interface make it a powerful tool for laboratory, industrial, and environmental professionals.
Checking the Current Loop Using the App
In industrial settings, analog signal output, such as the 4–20 mA current loop, is commonly used for transmitting sensor data. Verifying the integrity of this current loop is essential for ensuring accurate signal transmission.
The XCITE Measure app includes a feature that allows users to verify and troubleshoot the current loop from the field. As a result, the need for additional hardware is eliminated. This function enhances system diagnostics, increases signal confidence, and improves troubleshooting efficiency. Also, this feature reduces downtime and ensures that the system operates reliably.
Built-In Diagnostic Features for PTSA Sensor Health
The XCITE Measure app’s diagnostic dashboard provides valuable insights into sensor health and system performance with key features as follows:
- Sensor Status Checks: The app displays real-time sensor conditions, alerting users to potential issues such as fouling or drift.
- Battery Level Readings: For portable fluorometers, the app shows battery status, preventing unexpected downtime due to power loss.
- Firmware and Communication Health Updates: The app notifies users of available firmware updates and monitors communication integrity. Thus, enabling the sensor to operate with the latest enhancements and maintain reliable data transmission.
These diagnostic features enable early detection of issues, facilitating proactive maintenance and reducing the risk of system failures. By maintaining optimal sensor performance, the app contributes to the overall reliability and efficiency of water treatment processes.
Benefits of a Digitally Enabled PTSA Monitoring Workflow
The integration of AlpHa’s fluorometers with the XCITE Measure app offers several benefits that enhance the PTSA monitoring workflow:
- Faster Calibrations: The app’s guided calibration procedures streamline the process, reducing the time and effort required to calibrate sensors.
- Real-Time Decision-Making: Immediate access to accurate data allows operators to make informed decisions promptly, improving process control.
- Improved Traceability of Water Quality Data: Automatic data logging and easy export options facilitate comprehensive record-keeping and compliance with regulatory requirements.
- Reduced Technician Workload: The app’s user-friendly interface and diagnostic features simplify routine tasks. Thus, allowing technicians to focus on more critical responsibilities.
By bringing lab-grade accuracy into the field, this combination of hardware and software represents an industry-forward solution that enhances operational efficiency and data confidence.
PTSA Measurement Solutions from AlpHa
High-Performance PTSA Monitoring with AlpHa’s XC-PTSA Sensor

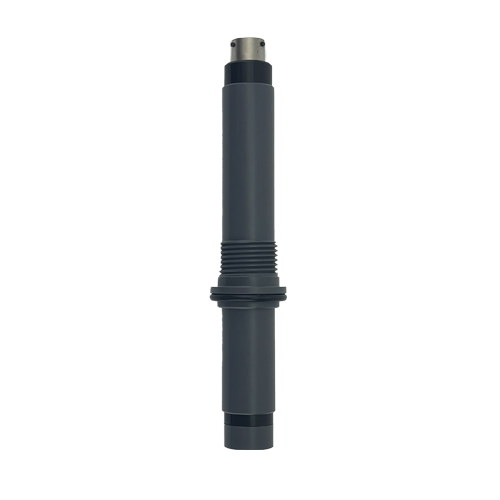

AlpHa’s XC-PTSA in-line fluorometer is engineered for precision, durability, and seamless integration into modern water treatment systems. This high-sensitivity sensor utilizes fluorescence-based detection to deliver accurate, real-time measurements of 1,3,6,8-Pyrenetetrasulfonic Acid (PTSA) concentrations, with a detection range typically spanning 0 to 1000 ppb and a minimum detection limit below 1 ppb. Its fast response time—often within seconds—enables immediate feedback on chemical dosing effectiveness. Built for industrial environments, the sensor features chemically resistant materials and supports both analog (0–3 V, 4–20 mA) and digital (RS-485 MODBUS RTU) outputs for flexible system integration. With Bluetooth connectivity and compatibility with AlpHa’s XCITE Measure app, the XC-PTSA sensor provides a complete and connected solution for continuous monitoring, calibration, and data management in cooling towers, reverse osmosis systems, and other water treatment applications.
A Complete PTSA Monitoring and Calibration Solution: Sensor and App in Perfect Sync
Pairing AlpHa’s XC-PTSA in-line fluorometer with the XCITE Measure app delivers a seamlessly integrated solution for real-time PTSA analysis in industrial water treatment systems. This combination transforms how operators manage fluorescent tracer measurements by uniting lab-grade accuracy with field-ready digital tools. The sensor provides continuous, highly sensitive monitoring of PTSA concentrations, while the app enables guided calibration, instant data visualization, and intuitive diagnostics—all from an iPhone. Operators can verify current loop integrity, log and export data, and troubleshoot sensor performance without additional tools or disruption to operations. Together, the XC-PTSA sensor and XCITE Measure app create a powerful, user-friendly platform that enhances chemical dosing control, streamlines maintenance, and increases confidence in system performance.
For more information and to download the XCITE Measure app, visit the App Store.
